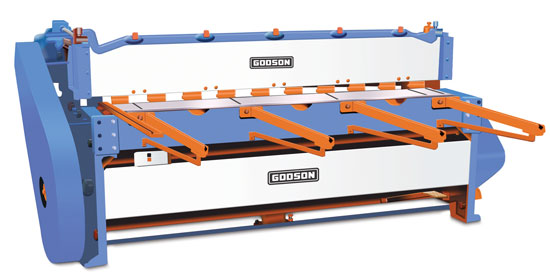

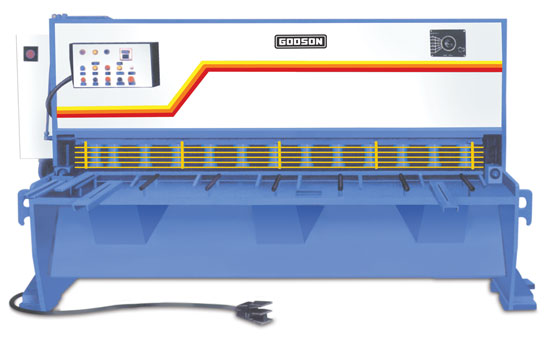

Godson Shearing Machine are constructed sturdily and designed for accuracy and dependability by employment of latest technology and experience.

Side Walls: are designed from Mild Steel to take heavy loads.

Bed and Upper Beam: Fabricated from Mild Steel to withstand and absorb heavy loads designed specially to adjust the blade clearance as required.

Pressure Plate: fabricated from Mild spring loaded.

Clutch, Brake and drive: Revolving key Clutch, linked with the main Gear Engages every time when the foot pedal is pressed. Drive provided V-Belts and all the journals are fitted in Gun Metal Bearings. Brake is adjustable one incorporated on the end of the Crank Shaft.

Back Gauge: in GSH-1-2-3-4 are Screw Drive where as in GSL1-2-3-4 and GSL1-2-3 are of Rack Pinion Type designed to accurately and easily.

Blades: are generally four edged and Grade-1 with single segment.

Lubrication: Lubrication oil cups provided connected with various pipes rendering supply of oil. Lubrication hand pump is provided in Model No. GSH-1-2-3-4 & GSL-4

Cutting: To cut mild steel only.

Standard Equipments: Back Gauge, Front Gauges, Wheel and Gear Guards, Foot pedal and Pulley.

Extra items: Electric Motor Starter, V-Belts, Stroke Counter and Scales.

Standard accessories:
