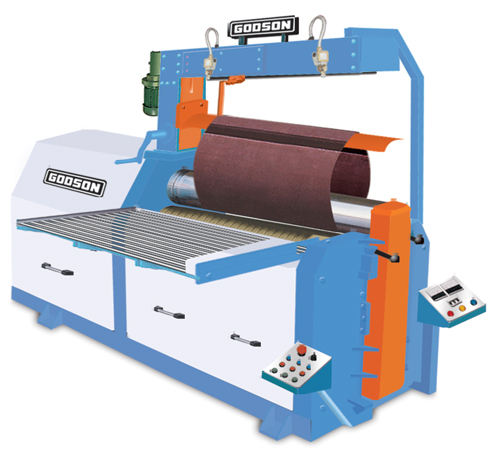

'GODSON' 2 Roll-bending & curving machines are unique in numbers of ways compare to other conventional 3 Roll bending machine. Godson 2 Rolls machines are equipped with Upper Steel Roll, Lower Roll coated with special material, Motorized overhead support is provided for ejecting the finished job easily, this also help to give required support while bending the small diameter job. Upper steel roll act as Male punch & lower roll act as die which creates tremendous pressure to force the sheet to bend up to radious of the upper roll orslip on tube. This action give superior control in rolling and curving the metal parts.

The Machine is equipped with changeable upper Roll facility to bend small diameter than the minimum one. This changeable roll can be changed in very short time. Advantage over conventional 3 roll bending machines are, your need to pre-bends edges os sheet and you have to roll the sheet several times to get desired final diameter & due to all, steel rolls can mar and scratch the material surface, it almost useless to bend perforated, cut-outs or embossed sheet, where as in Godson 2 roll machines all these problems can be eliminates very easily as in quick time your get an accurate, continues curves that start almost instatly, in fact you can get an absolute minimum of flat sopts on the leading & trailing edges of the sheet.

The anti-deflection feature of the upper roll means you can form all sizes of material (up to capacity) accurately & without bowing. A unique mechanical system creates the lockup pressure that results in each pass being constant and without variation, this system produces the same pressure for forming the parts each time the machine operations.
