Easy to maintain and useful for various jobs.

Modern design and rigid structure.

First time in India , our machine are fitted with Electric Brake Motor and Control Panel, so that Machine can be stopped at any stage of operations, hence the shape in rolling as per requirement is most possible and due to the movable control panel you can operate Machine very easily.

Machine is fitted with total 2 nos. Gear Box, Electric Brake Motor, Push Button Type Movable operating switch board and Electric control panel for easy & safe operations.

First time in India, we only offer the machine with double Gear Box, One is warm gear box and another is spur reduction gear box, due to this the fatigue in operation and overload on electric motor & warm reduction gear box is totally avoided even when machine is Working in over capacity and more over bending operation became more easy.

Whole machine is made out of quality prime materials.

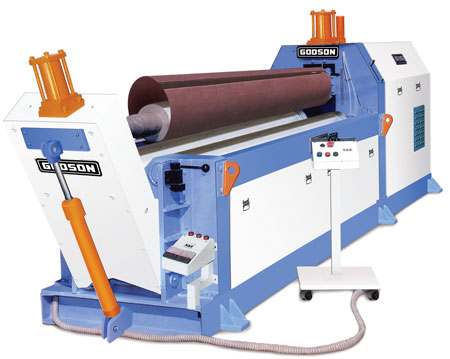

Only Top Roll Pressing (Up-Down) and opening-closing of drop-end are through hydraulic System & cylinders all other operations are carried out mechanically in hydro-mechanical version Top Roll Pressing is manually and opening / closing of end-dropper is manual or motorized.

Hydro-Mechanical Machine required less man power compare to mechanical version, the same directly Effect your production rate and finish job value.

Apart from above the rates are more competitive in its rang.

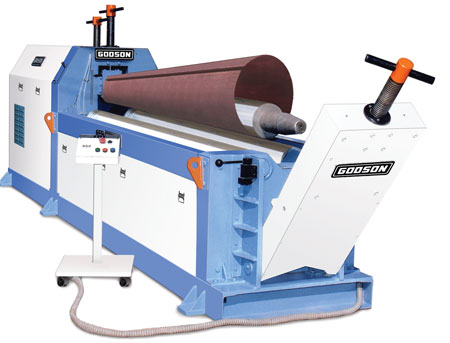

Very useful for getting cylindrical shapes and better performance. It works with 3 Rolls Pyramid principals. Bottom rolls are fixed and driven by Gears and warm Reduction Gear. Box Top roll rotates in fixed positions and can be adjusted up & down manually by adjustable screws.

Housing are made from M.S.Plate of suitable strength and mounted on heavy base frame, Rolls are made from forged steel and perfectly machined for accurate result. For correct feeding and grip axial grooves are provided on bottom rolls. Screw jack is given to keep top roll horizontal when formed shall is to take out.
